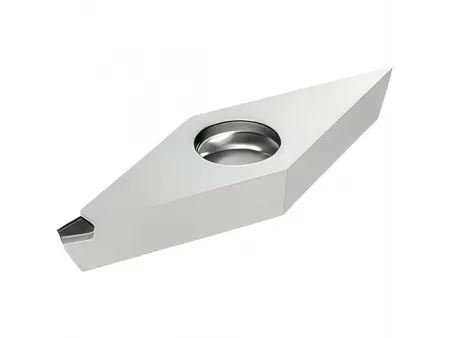

Токарные PCD пластины типа VCGW

Запрос цены

Веб-сайт: http://winicetech-ru.com/pcd-tools-vcgw-2-3-6.html

Для токарной обработки, фрезерования, расточки, обработки канавок и нарезания резьбы

Технические характеристики

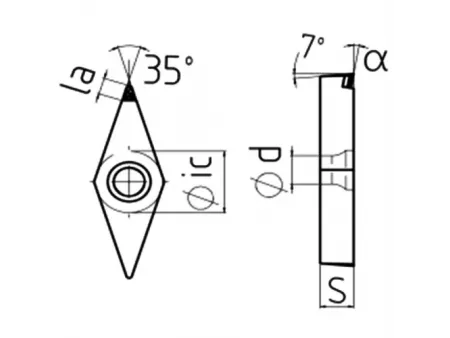

ISO-код	ANSI-код	Тип кромки	Длина режущей кромки	Диаметр отверстия	Толщина	Rake	Радиус при вершине	Длина вершины
			ic	Ød	s	α	r	la
VCGW110302	VCGW22(0.5)	1N	6.35	2.8	3.18	0°	0.2	2.5
VCGT110302	VCGT22(0.5)	1N	6.35	2.8	3.18	5°	0.2	2.5
VCGT110302	VCGT22(0.5)	1N	6.35	2.8	3.18	10°	0.2	2.5
VCGW110304	VCGW221	1N	6.35	2.8	3.18	0°	0.4	2.5
VCGT110304	VCGT221	1N	6.35	2.8	3.18	5°	0.4	2.5
VCGT110304	VCGT221	1N	6.35	2.8	3.18	10°	0.4	2.5
VCGW110308	VCGW222	1N	6.35	2.8	3.18	0°	0.8	2.5
VCGT110308	VCGT222	1N	6.35	2.8	3.18	5°	0.8	2.5
VCGT110308	VCGT222	1N	6.35	2.8	3.18	10°	0.8	2.5
VCGW110302	VCGW22(0.5)	2N	6.35	2.8	3.18	0°	0.2	2.5
VCGT110302	VCGT22(0.5)	2N	6.35	2.8	3.18	5°	0.2	2.5
VCGT110302	VCGT22(0.5)	2N	6.35	2.8	3.18	10°	0.2	2.5
VCGW110304	VCGW221	2N	6.35	2.8	3.18	0°	0.4	2.5
VCGT110304	VCGT221	2N	6.35	2.8	3.18	5°	0.4	2.5
VCGT110304	VCGT221	2N	6.35	2.8	3.18	10°	0.4	2.5
VCGW110308	VCGW222	2N	6.35	2.8	3.18	0°	0.8	2.5
VCGT110308	VCGT222	2N	6.35	2.8	3.18	5°	0.8	2.5
VCGT110308	VCGT222	2N	6.35	2.8	3.18	10°	0.8	2.5
VCGW160402	VCGW33(0.5)	1N	9.525	4.4	4.76	0°	0.2	2.5
VCGT160402	VCGT33(0.5)	1N	9.525	4.4	4.76	5°	0.2	2.5
VCGT160402	VCGT33(0.5)	1N	9.525	4.4	4.76	10°	0.2	2.5
VCGW160404	VCGW331	1N	9.525	4.4	4.76	0°	0.4	2.5
VCGT160404	VCGT331	1N	9.525	4.4	4.76	5°	0.4	2.5
VCGT160404	VCGT331	1N	9.525	4.4	4.76	10°	0.4	2.5
VCGW160408	VCGW332	1N	9.525	4.4	4.76	0°	0.8	2.5
VCGT160408	VCGT332	1N	9.525	4.4	4.76	5°	0.8	2.5
VCGT160408	VCGT332	1N	9.525	4.4	4.76	10°	0.8	2.5
VCGW160402	VCGW33(0.5)	2N	9.525	4.4	4.76	0°	0.2	2.5
VCGT160402	VCGT33(0.5)	2N	9.525	4.4	4.76	5°	0.2	2.5
VCGT160402	VCGT33(0.5)	2N	9.525	4.4	4.76	10°	0.2	2.5
VCGW160404	VCGW331	2N	9.525	4.4	4.76	0°	0.4	2.5
VCGT160404	VCGT331	2N	9.525	4.4	4.76	5°	0.4	2.5
VCGT160404	VCGT331	2N	9.525	4.4	4.76	10°	0.4	2.5
VCGW160408	VCGW332	2N	9.525	4.4	4.76	0°	0.8	2.5
VCGT160408	VCGT332	2N	9.525	4.4	4.76	5°	0.8	2.5
VCGT160408	VCGT332	2N	9.525	4.4	4.76	10°	0.8	2.5
