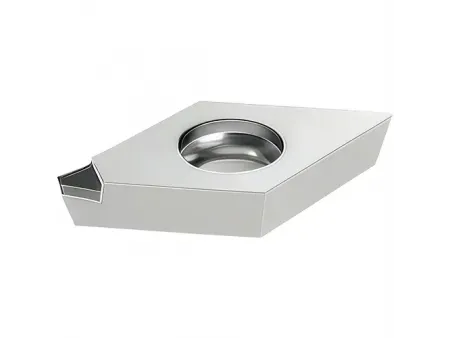

Токарные PCD пластины типа DCGW

Запрос цены

Веб-сайт: http://winicetech-ru.com/pcd-tools-dcgw-2-3-2.html

Для токарной обработки, фрезерования, расточки, обработки канавок и нарезания резьбы

Технические характеристики

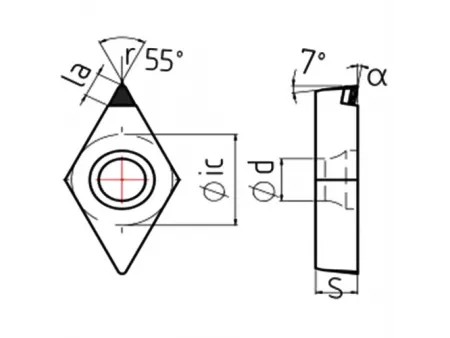

ISO-код	ANSI-код	Тип кромки	Длина режущей кромки	Диаметр отверстия	Толщина	Rake	Радиус при вершине	Длина вершины
			ic	Ød	s	α	r	la
DCGW070202	DCGW2(1.5)(0.5)	1N	6.35	2.8	2.38	0°	0.2	2.5
DCGT070202	DCGT2(1.5)(0.5)	1N	6.35	2.8	2.38	5°	0.2	2.5
DCGT070202	DCGT2(1.5)(0.5)	1N	6.35	2.8	2.38	10°	0.2	2.5
DCGW070204	DCGW2(1.5)1	1N	6.35	2.8	2.38	0°	0.4	2.5
DCGT070204	DCTW2(1.5)1	1N	6.35	2.8	2.38	5°	0.4	2.5
DCGT070204	DCTW2(1.5)1	1N	6.35	2.8	2.38	10°	0.4	2.5
DCGW070208	DCGW2(1.5)2	1N	6.35	2.8	2.38	0°	0.8	2.5
DCGT070208	DCGT2(1.5)2	1N	6.35	2.8	2.38	5°	0.8	2.5
DCGT070208	DCGT2(1.5)2	1N	6.35	2.8	2.38	10°	0.8	2.5
DCGW070202	DCGW2(1.5)(0.5)	2N	6.35	2.8	2.38	0°	0.2	2.5
DCGT070202	DCGT2(1.5)(0.5)	2N	6.35	2.8	2.38	5°	0.2	2.5
DCGT070202	DCGT2(1.5)(0.5)	2N	6.35	2.8	2.38	10°	0.2	2.5
DCGW070204	DCGW2(1.5)1	2N	6.35	2.8	2.38	0°	0.4	2.5
DCGT070204	DCGT2(1.5)1	2N	6.35	2.8	2.38	5°	0.4	2.5
DCGT070204	DCGT2(1.5)1	2N	6.35	2.8	2.38	10°	0.4	2.5
DCGW070208	DCGW2(1.5)2	2N	6.35	2.8	2.38	0°	0.8	2.5
DCGT070208	DCGT2(1.5)2	2N	6.35	2.8	2.38	5°	0.8	2.5
DCGT070208	DCGT2(1.5)2	2N	6.35	2.8	2.38	10°	0.8	2.5
DCGW11T302	DCGW3(2.5)(0.5)	1N	9.525	4.4	3.97	0°	0.2	2.5
DCGT11T302	DCGT3(2.5)(0.5)	1N	9.525	4.4	3.97	5°	0.2	2.5
DCGT11T302	DCGT3(2.5)(0.5)	1N	9.525	4.4	3.97	10°	0.2	2.5
DCGW11T304	DCGW3(2.5)1	1N	9.525	4.4	3.97	0°	0.4	2.5
DCGT11T304	DCGT3(2.5)1	1N	9.525	4.4	3.97	5°	0.4	2.5
DCGT11T304	DCGT3(2.5)1	1N	9.525	4.4	3.97	10°	0.4	2.5
DCGW11T308	DCGW3(2.5)2	1N	9.525	4.4	3.97	0°	0.8	2.5
DCGT11T308	DCGT3(2.5)2	1N	9.525	4.4	3.97	5°	0.8	2.5
DCGT11T308	DCGT3(2.5)2	1N	9.525	4.4	3.97	10°	0.8	2.5
DCGW11T302	DCGW3(2.5)(0.5)	2N	9.525	4.4	3.97	0°	0.2	2.5
DCGT11T302	DCGT3(2.5)(0.5)	2N	9.525	4.4	3.97	5°	0.2	2.5
DCGT11T302	DCGT3(2.5)(0.5)	2N	9.525	4.4	3.97	10°	0.2	2.5
DCGW11T304	DCGW3(2.5)1	2N	9.525	4.4	3.97	0°	0.4	2.5
DCGT11T304	DCGT3(2.5)1	2N	9.525	4.4	3.97	5°	0.4	2.5
DCGT11T304	DCGT3(2.5)1	2N	9.525	4.4	3.97	10°	0.4	2.5
DCGW11T308	DCGW3(2.5)2	2N	9.525	4.4	3.97	0°	0.8	2.5
DCGT11T308	DCGT3(2.5)2	2N	9.525	4.4	3.97	5°	0.8	2.5
DCGT11T308	DCGT3(2.5)2	2N	9.525	4.4	3.97	10°	0.8	2.5
