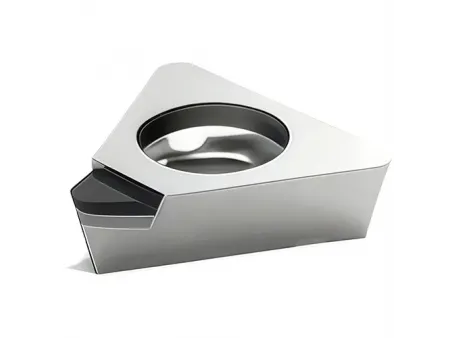

Токарные PCD пластины типа TPGW

Запрос цены

Веб-сайт: http://winicetech-ru.com/pcd-tools-tpgw-2-3-4.html

Для токарной обработки, фрезерования, расточки, обработки канавок и нарезания резьбы

Технические характеристики

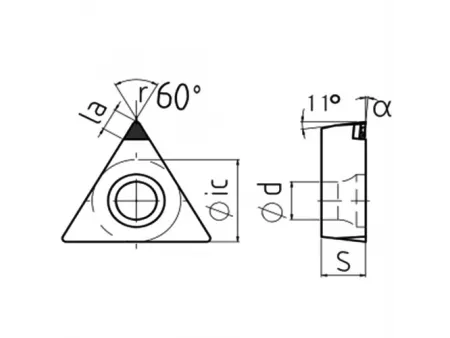

ISO-код	ANSI-код	Тип кромки	Длина режущей кромки	Диаметр отверстия	Толщина	Rake	Радиус при вершине	Длина вершины
			ic	Ød	s	α	r	la
TPGW080202	TPGW(1.5)(1.5)(0.5)	1N	4.76	2.4	2.38	0°	0.2	2.5
TPGT080202	TPGT(1.5)(1.5)(0.5)	1N	4.76	2.4	2.38	5°	0.2	2.5
TPGT080202	TPGT(1.5)(1.5)(0.5)	1N	4.76	2.4	2.38	10°	0.2	2.5
TPGW080204	TPGW(1.5)(1.5)1	1N	4.76	2.4	2.38	0°	0.4	2.5
TPGT080204	TPGT(1.5)(1.5)1	1N	4.76	2.4	2.38	5°	0.4	2.5
TPGT080204	TPGT(1.5)(1.5)1	1N	4.76	2.4	2.38	10°	0.4	2.5
TPGW080208	TPGW(1.5)(1.5)2	1N	4.76	2.4	2.38	0°	0.8	2.5
TPGT080208	TPGT(1.5)(1.5)2	1N	4.76	2.4	2.38	5°	0.8	2.5
TPGT080208	TPGT(1.5)(1.5)2	1N	4.76	2.4	2.38	10°	0.8	2.5
TPGW080202	TPGW(1.5)(1.5)(0.5)	3N	4.76	2.4	2.38	0°	0.2	2.5
TPGT080202	TPGT(1.5)(1.5)(0.5)	3N	4.76	2.4	2.38	5°	0.2	2.5
TPGT080202	TPGT(1.5)(1.5)(0.5)	3N	4.76	2.4	2.38	10°	0.2	2.5
TPGW080204	TPGW(1.5)(1.5)1	3N	4.76	2.4	2.38	0°	0.4	2.5
TPGT080204	TPGT(1.5)(1.5)1	3N	4.76	2.4	2.38	5°	0.4	2.5
TPGT080204	TPGT(1.5)(1.5)1	3N	4.76	2.4	2.38	10°	0.4	2.5
TPGW080208	TPGW(1.5)(1.5)2	3N	4.76	2.4	2.38	0°	0.8	2.5
TPGT080208	TPGT(1.5)(1.5)2	3N	4.76	2.4	2.38	5°	0.8	2.5
TPGT080208	TPGT(1.5)(1.5)2	3N	4.76	2.4	2.38	10°	0.8	2.5
TPGW110302	TPGW22(0.5)	1N	6.35	3.3	3.18	0°	0.2	2.5
TPGT110302	TPGT22(0.5)	1N	6.35	3.3	3.18	5°	0.2	2.5
TPGT110302	TPGT22(0.5)	1N	6.35	3.3	3.18	10°	0.2	2.5
TPGW110304	TPGW221	1N	6.35	3.3	3.18	0°	0.4	2.5
TPGT110304	TPGT221	1N	6.35	3.3	3.18	5°	0.4	2.5
TPGT110304	TPGT221	1N	6.35	3.3	3.18	10°	0.4	2.5
TPGW110308	TPGW222	1N	6.35	3.3	3.18	0°	0.8	2.5
TPGT110308	TPGT222	1N	6.35	3.3	3.18	5°	0.8	2.5
TPGT110308	TPGT222	1N	6.35	3.3	10°	0.8	2.5
TPGW110302	TPGW22(0.5)	3N	6.35	3.3	3.18	0°	0.2	2.5
TPGT110302	TPGT22(0.5)	3N	6.35	3.3	3.18	5°	0.2	2.5
TPGT110302	TPGT22(0.5)	3N	6.35	3.3	3.18	10°	0.2	2.5
TPGW110304	TPGW221	3N	6.35	3.3	3.18	0°	0.4	2.5
TPGT110304	TPGT221	3N	6.35	3.3	3.18	5°	0.4	2.5
TPGT110304	TPGT221	3N	6.35	3.3	3.18	10°	0.4	2.5
TPGW110308	TPGW222	3N	6.35	3.3	3.18	0°	0.8	2.5
TPGT110308	TPGT222	3N	6.35	3.3	3.18	5°	0.8	2.5
TPGT110308	TPGT222	3N	6.35	3.3	3.18	10°	0.8	2.5
TPGW160302	TPGW32(0.5)	1N	9.525	4.4	3.18	0°	0.2	2.5
TPGT160302	TPGT32(0.5)	1N	9.525	4.4	3.18	5°	0.2	2.5
TPGT160302	TPGT32(0.5)	1N	9.525	4.4	3.18	10°	0.2	2.5
TPGW160304	TPGW321	1N	9.525	4.4	3.18	0°	0.4	2.5
TPGT160304	TPGT321	1N	9.525	4.4	3.18	5°	0.4	2.5
TPGT160304	TPGT321	1N	9.525	4.4	3.18	10°	0.4	2.5
TPGW160308	TPGW322	1N	9.525	4.4	3.18	0°	0.8	2.5
TPGT160308	TPGT322	1N	9.525	4.4	3.18	5°	0.8	2.5
TPGT160308	TPGT322	1N	9.525	4.4	3.18	10°	0.8	2.5
TPGW160302	TPGW32(0.5)	3N	9.525	4.4	3.18	0°	0.2	2.5
TPGT160302	TPGT32(0.5)	3N	9.525	4.4	3.18	5°	0.2	2.5
TPGT160302	TPGT32(0.5)	3N	9.525	4.4	3.18	10°	0.2	2.5
TPGW160304	TPGW321	3N	9.525	4.4	3.18	0°	0.4	2.5
TPGT160304	TPGT321	3N	9.525	4.4	3.18	5°	0.4	2.5
TPGT160304	TPGT321	3N	9.525	4.4	3.18	10°	0.4	2.5
TPGW160308	TPGW322	3N	9.525	4.4	3.18	0°	0.8	2.5
TPGT160308	TPGT322	3N	9.525	4.4	3.18	5°	0.8	2.5
TPGT160308	TPGT322	3N	9.525	4.4	3.18	10°	0.8	2.5
TPGW160402	TPGW33(0.5)	1N	9.525	4.4	4.76	0°	0.2	2.5
TPGT160402	TPGT33(0.5)	1N	9.525	4.4	4.76	5°	0.2	2.5
TPGT160402	TPGT33(0.5)	1N	9.525	4.4	4.76	10°	0.2	2.5
TPGW160404	TPGW331	1N	9.525	4.4	4.76	0°	0.4	2.5
TPGT160404	TPGT331	1N	9.525	4.4	4.76	5°	0.4	2.5
TPGT160404	TPGT331	1N	9.525	4.4	4.76	10°	0.4	2.5
TPGW160408	TPGW332	1N	9.525	4.4	4.76	0°	0.8	2.5
TPGT160408	TPGT332	1N	9.525	4.4	4.76	5°	0.8	2.5
TPGT160408	TPGT332	1N	9.525	4.4	4.76	10°	0.8	2.5
TPGW160402	TPGW33(0.5)	3N	9.525	4.4	4.76	0°	0.2	2.5
TPGT160402	TPGT33(0.5)	3N	9.525	4.4	4.76	5°	0.2	2.5
TPGT160402	TPGT33(0.5)	3N	9.525	4.4	4.76	10°	0.2	2.5
TPGW160404	TPGW331	3N	9.525	4.4	4.76	0°	0.4	2.5
TPGT160404	TPGT331	3N	9.525	4.4	4.76	5°	0.4	2.5
TPGT160404	TPGT331	3N	9.525	4.4	4.76	10°	0.4	2.5
TPGW160408	TPGW332	3N	9.525	4.4	4.76	0°	0.8	2.5
TPGT160408	TPGT332	3N	9.525	4.4	4.76	5°	0.8	2.5
TPGT160408	TPGT332	3N	9.525	4.4	4.76	10°	0.8	2.5
