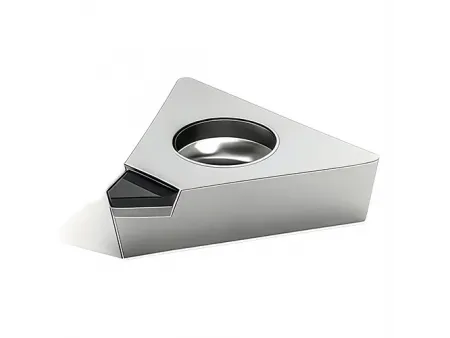

Токарные PCD пластины типа TCGW

Запрос цены

Веб-сайт: http://winicetech-ru.com/pcd-tools-tcgw-2-3-3.html

Для токарной обработки, фрезерования, расточки, обработки канавок и нарезания резьбы

Технические характеристики

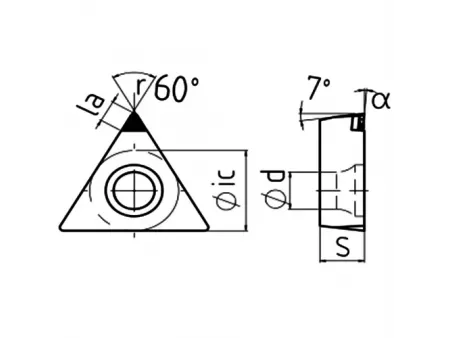

ISO-код	ANSI-код	Тип кромки	Длина режущей кромки	Диаметр отверстия	Толщина	Rake	Радиус при вершине	Длина вершины
			ic	Ød	s	α	r	la
TCGW080202	TCGW(1.5)(1.5)(0.5)	1N	4.76	2.4	2.38	0°	0.2	2.5
TCGT080202	TCGT(1.5)(1.5)(0.5)	1N	4.76	2.4	2.38	5°	0.2	2.5
TCGT080202	TCGT(1.5)(1.5)(0.5)	1N	4.76	2.4	2.38	10°	0.2	2.5
TCGW080204	TCGW(1.5)(1.5)1	1N	4.76	2.4	2.38	0°	0.4	2.5
TCGT080204	TCGT(1.5)(1.5)1	1N	4.76	2.4	2.38	5°	0.4	2.5
TCGT080204	TCGT(1.5)(1.5)1	1N	4.76	2.4	2.38	10°	0.4	2.5
TCGW080208	TCGW(1.5)(1.5)2	1N	4.76	2.4	2.38	0°	0.8	2.5
TCGT080208	TCGT(1.5)(1.5)2	1N	4.76	2.4	2.38	5°	0.8	2.5
TCGT080208	TCGT(1.5)(1.5)2	1N	4.76	2.4	2.38	10°	0.8	2.5
TCGW110302	TCGW22(0.5)	1N	6.35	2.8	3.18	0°	0.2	2.5
TCGT110302	TCGT22(0.5)	1N	6.35	2.8	3.18	5°	0.2	2.5
TCGT110302	TCGT22(0.5)	1N	6.35	2.8	3.18	10°	0.2	2.5
TCGW110304	TCGW221	1N	6.35	2.8	3.18	0°	0.4	2.5
TCGT110304	TCGT221	1N	6.35	2.8	3.18	5°	0.4	2.5
TCGT110304	TCGT221	1N	6.35	2.8	3.18	10°	0.4	2.5
TCGW110308	TCGW222	1N	6.35	2.8	3.18	0°	0.8	2.5
TCGT110308	TCGT222	1N	6.35	2.8	3.18	5°	0.8	2.5
TCGT110308	TCGT222	1N	6.35	2.8	3.18	10°	0.8	2.5
TCGW160402	TCGW33(0.5)	1N	9.525	4.4	4.76	0°	0.2	2.5
TCGT160402	TCGT33(0.5)	1N	9.525	4.4	4.76	5°	0.2	2.5
TCGT160402	TCGT33(0.5)	1N	9.525	4.4	4.76	10°	0.2	2.5
TCGW160404	TCGW331	1N	9.525	4.4	4.76	0°	0.4	2.5
TCGT160404	TCGT331	1N	9.525	4.4	4.76	5°	0.4	2.5
TCGT160404	TCGT331	1N	9.525	4.4	4.76	10°	0.4	2.5
TCGW160408	TCGW332	1N	9.525	4.4	4.76	0°	0.8	2.5
TCGT160408	TCGT332	1N	9.525	4.4	4.76	5°	0.8	2.5
TCGT160408	TCGT332	1N	9.525	4.4	4.76	10°	0.8	2.5
TCGW080202	TCGW(1.5)(1.5)(0.5)	3N	4.76	2.4	2.38	0°	0.2	2.5
TCGT080202	TCGT(1.5)(1.5)(0.5)	3N	4.76	2.4	2.38	5°	0.2	2.5
TCGT080202	TCGT(1.5)(1.5)(0.5)	3N	4.76	2.4	2.38	10°	0.2	2.5
TCGW080204	TCGW(1.5)(1.5)1	3N	4.76	2.4	2.38	0°	0.4	2.5
TCGT080204	TCGT(1.5)(1.5)1	3N	4.76	2.4	2.38	5°	0.4	2.5
TCGT080204	TCGT(1.5)(1.5)1	3N	4.76	2.4	2.38	10°	0.4	2.5
TCGW080208	TCGW(1.5)(1.5)2	3N	4.76	2.4	2.38	0°	0.8	2.5
TCGT080208	TCGT(1.5)(1.5)2	3N	4.76	2.4	2.38	5°	0.8	2.5
TCGT080208	TCGT(1.5)(1.5)2	3N	4.76	2.4	2.38	10°	0.8	2.5
TCGW110302	TCGW22(0.5)	3N	6.35	2.8	3.18	0°	0.2	2.5
TCGT110302	TCGT22(0.5)	3N	6.35	2.8	3.18	5°	0.2	2.5
TCGT110302	TCGT22(0.5)	3N	6.35	2.8	3.18	10°	0.2	2.5
TCGW110304	TCGW221	3N	6.35	2.8	3.18	0°	0.4	2.5
TCGT110304	TCGT221	3N	6.35	2.8	3.18	5°	0.4	2.5
TCGT110304	TCGT221	3N	6.35	2.8	3.18	10°	0.4	2.5
TCGW110308	TCGW222	3N	6.35	2.8	3.18	0°	0.8	2.5
TCGT110308	TCGT222	3N	6.35	2.8	3.18	5°	0.8	2.5
TCGT110308	TCGT222	3N	6.35	2.8	3.18	10°	0.8	2.5
TCGW160402	TCGW33(0.5)	3N	9.525	4.4	4.76	0°	0.2	2.5
TCGT160402	TCGT33(0.5)	3N	9.525	4.4	4.76	5°	0.2	2.5
TCGT160402	TCGT33(0.5)	3N	9.525	4.4	4.76	10°	0.2	2.5
TCGW160404	TCGW331	3N	9.525	4.4	4.76	0°	0.4	2.5
TCGT160404	TCGT331	3N	9.525	4.4	4.76	5°	0.4	2.5
TCGT160404	TCGT331	3N	9.525	4.4	4.76	10°	0.4	2.5
TCGW160408	TCGW332	3N	9.525	4.4	4.76	0°	0.8	2.5
TCGT160408	TCGT332	3N	9.525	4.4	4.76	5°	0.8	2.5
TCGT160408	TCGT332	3N	9.525	4.4	4.76	10°	0.8	2.5
