Токарные PCBN пластины типа WNGA

Запрос цены

Веб-сайт: http://winicetech-ru.com/pcbn-cutting-tools-wnga-2-2-9.html

Технические характеристики

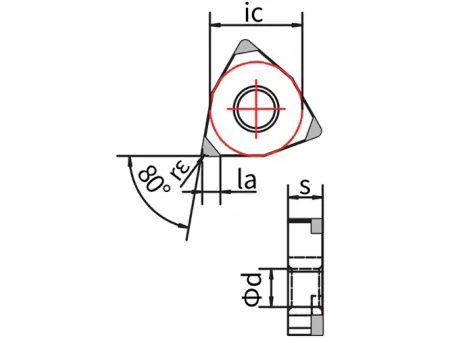

ISO-код	ANSI-код	Тип кромки	Формирование кромки	Длина режущей кромки	Диаметр отверстия	Толщина	Радиус при вершине	Длина вершины	H	K	S
				ic	Ød	s	r	la
WNGA080404	WNGA431	3N	Стандартная	12.7	5.16	4.76	0.4	2.2	●	●	●
WNGA080408	WNGA432						0.8
WNGA080412	WNGA433						1.2
WNGA080404	WNGA431	3N	Зачистная (Wiper)	12.7	5.16	4.76	0.4	2.2	●	●	●
WNGA080408	WNGA432						0.8
WNGA080412	WNGA433						1.2
WNGA080404	WNGA431	3N	Стружколом	12.7	5.16	4.76	0.4	2.2	●	●	●
WNGA080408	WNGA432						0.8
WNGA080412	WNGA433						1.2
WNGA080404	WNGA431	3N	Стандартная	12.7	5.16	4.76	0.4	3	●	●	●
WNGA080408	WNGA432						0.8
WNGA080412	WNGA433						1.2
WNGA080404	WNGA431	3N	Зачистная (Wiper)	12.7	5.16	4.76	0.4	3	●	●	●
WNGA080408	WNGA432						0.8
WNGA080412	WNGA433						1.2
WNGA080404	WNGA431	3N	Стружколом	12.7	5.16	4.76	0.4	3	●	●	●
WNGA080408	WNGA432						0.8
WNGA080412	WNGA433						1.2
WNGA080408	WNGA432	3N	Стандартная	12.7	5.16	4.76	0.8	4	●	●	●
WNGA080412	WNGA433						1.2
WNGA080416	WNGA434						1.6
WNGA080408	WNGA432	3N	Зачистная (Wiper)	12.7	5.16	4.76	0.8	4	●	●	●
WNGA080412	WNGA433						1.2
WNGA080416	WNGA434						1.6
WNGA080408	WNGA432	3N	Стружколом	12.7	5.16	4.76	0.8	4	●	●	●
WNGA080412	WNGA433						1.2
WNGA080416	WNGA434						1.6
WNGA080404	WNGA431	6N	Стандартная	12.7	5.16	4.76	0.4	2.2	●	●	●
WNGA080408	WNGA432						0.8
WNGA080412	WNGA433						1.2
WNGA080404	WNGA431	6N	Зачистная (Wiper)	12.7	5.16	4.76	0.4	2.2	●	●	●
WNGA080408	WNGA432						0.8
WNGA080412	WNGA433						1.2
WNGA080404	WNGA431	6N	Стружколом	12.7	5.16	4.76	0.4	2.2	●	●	●
WNGA080408	WNGA432						0.8
WNGA080412	WNGA433											1.2
WNGA080404	WNGA431	6N	Стандартная	12.7	5.16	4.76	0.4	3	●	●	●
WNGA080408	WNGA432						0.8
WNGA080412	WNGA433						1.2
WNGA080404	WNGA431	6N	Зачистная (Wiper)	12.7	5.16	4.76	0.4	3	●	●	●
WNGA080408	WNGA432						0.8
WNGA080412	WNGA433						1.2
WNGA080404	WNGA431	6N	Стружколом	12.7	5.16	4.76	0.4	3	●	●	●
WNGA080408	WNGA432						0.8
WNGA080412	WNGA433						1.2
WNGA080408	WNGA432	6N	Стандартная	12.7	5.16	4.76	0.8	4	●	●	●
WNGA080412	WNGA433						1.2
WNGA080416	WNGA434						1.6
WNGA080408	WNGA432	6N	Зачистная (Wiper)	12.7	5.16	4.76	0.8	4	●	●	●
WNGA080412	WNGA433						1.2
WNGA080416	WNGA434						1.6
WNGA080408	WNGA432	6N	Стружколом	12.7	5.16	4.76	0.8	4	●	●	●
WNGA080412	WNGA433						1.2
WNGA080416	WNGA434						1.6
