Токарные PCBN пластины типа CCGW

Запрос цены

Веб-сайт: http://winicetech-ru.com/pcbn-cutting-tools-ccgw-2-2-1.html

Технические характеристики

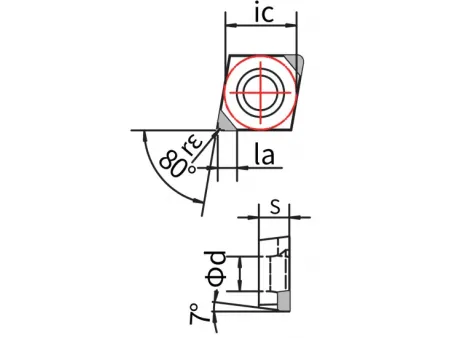

ISO-код	ANSI-код	Тип кромки	Формирование кромки	Длина режущей кромки	Диаметр отверстия	Толщина	Радиус при вершине	Длина вершины	H	K	S
				ic	Ød	s	r	la
CCGW060202	CCGW2(1.5)(0.5)	2N	Стандартная	6.35	2.8	2.38	0.2	2.2	●	●	●
CCGW060204	CCGW2(1.5)1						0.4
CCGW060208	CCGW2(1.5)2						0.8
CCGW060202	CCGW2(1.5)(0.5)	2N	Зачистная (Wiper)	6.35	2.8	2.38	0.2	2.2	●	●	●
CCGW060204	CCGW2(1.5)1						0.4
CCGW060208	CCGW2(1.5)2						0.8
CCGW060202	CCGW2(1.5)(0.5)	2N	Стружколом	6.35	2.8	2.38	0.2	2.2	●	●	●
CCGW060204	CCGW2(1.5)1						0.4
CCGW060208	CCGW2(1.5)2						0.8
CCGW060202	CCGW2(1.5)(0.5)	2N	Стандартная	6.35	2.8	2.38	0.2	3	●	●	●
CCGW060204	CCGW2(1.5)1						0.4
CCGW060208	CCGW2(1.5)2						0.8
CCGW060202	CCGW2(1.5)(0.5)	2N	Зачистная (Wiper)	6.35	2.8	2.38	0.2	3	●	●	●
CCGW060204	CCGW2(1.5)1						0.4
CCGW060208	CCGW2(1.5)2						0.8
CCGW060202	CCGW2(1.5)(0.5)	2N	Стружколом	6.35	2.8	2.38	0.2	3	●	●	●
CCGW060204	CCGW2(1.5)1						0.4
CCGW060208	CCGW2(1.5)2						0.8
CCGW09T302	CCGW3(2.5)(0.5)	2N	Стандартная	9.525	4.4	3.97	0.2	2.2	●	●	●
CCGW09T304	CCGW3(2.5)1						0.4
CCGW09T308	CCGW3(2.5)2						0.8
CCGW09T312	CCGW3(2.5)3						1.2
CCGW09T302	CCGW3(2.5)(0.5)	2N	Зачистная (Wiper)	9.525	4.4	3.97	0.2	2.2	●	●	●
CCGW09T304	CCGW3(2.5)1						0.4
CCGW09T308	CCGW3(2.5)2						0.8
CCGW09T312	CCGW3(2.5)3						1.2
CCGW09T302	CCGW3(2.5)(0.5)	2N	Стружколом	9.525	4.4	3.97	0.2	2.2	●	●	●
CCGW09T304	CCGW3(2.5)1						0.4
CCGW09T308	CCGW3(2.5)2						0.8
CCGW09T312	CCGW3(2.5)3						1.2
CCGW09T302	CCGW3(2.5)(0.5)	2N	Стандартная	9.525	4.4	3.97	0.2	3	●	●	●
CCGW09T304	CCGW3(2.5)1						0.4
CCGW09T308	CCGW3(2.5)2						0.8
CCGW09T312	CCGW3(2.5)3						1.2
CCGW09T302	CCGW3(2.5)(0.5)	2N	Зачистная (Wiper)	9.525	4.4	3.97	0.2	3	●	●	●
CCGW09T304	CCGW3(2.5)1						0.4
CCGW09T308	CCGW3(2.5)2						0.8
CCGW09T312	CCGW3(2.5)3						1.2
CCGW09T302	CCGW3(2.5)(0.5)	2N	Стружколом	9.525	4.4	3.97	0.2	3	●	●	●
CCGW09T304	CCGW3(2.5)1						0.4
CCGW09T308	CCGW3(2.5)2						0.8
CCGW09T312	CCGW3(2.5)3						1.2
CCGW120402	CCGW43(0.5)	2N	Стандартная	12.7	5.5	4.76	0.2	2.2	●	●	●
CCGW120404	CCGW431						0.4
CCGW120408	CCGW432						0.8
CCGW120412	CCGW433						1.2
CCGW120402	CCGW43(0.5)	2N	Зачистная (Wiper)	12.7	5.5	4.76	0.2	2.2	●	●	●
CCGW120404	CCGW431						0.4
CCGW120408	CCGW432						0.8
CCGW120412	CCGW433						1.2
CCGW120402	CCGW43(0.5)	2N	Стружколом	12.7	5.5	4.76	0.2	2.2	●	●	●
CCGW120404	CCGW431						0.4
CCGW120408	CCGW432						0.8
CCGW120412	CCGW433						1.2
CCGW120402	CCGW43(0.5)	2N	Стандартная	12.7	5.5	4.76	0.2	3	●	●	●
CCGW120404	CCGW431						0.4
CCGW120408	CCGW432						0.8
CCGW120412	CCGW433						1.2
CCGW120402	CCGW43(0.5)	2N	Зачистная (Wiper)	12.7	5.5	4.76	0.2	3	●	●	●
CCGW120404	CCGW431						0.4
CCGW120408	CCGW432						0.8
CCGW120412	CCGW433						1.2
CCGW120402	CCGW43(0.5)	2N	Стружколом	12.7	5.5	4.76	0.2	3	●	●	●
CCGW120404	CCGW431						0.4
CCGW120408	CCGW432						0.8
CCGW120412	CCGW433						1.2
